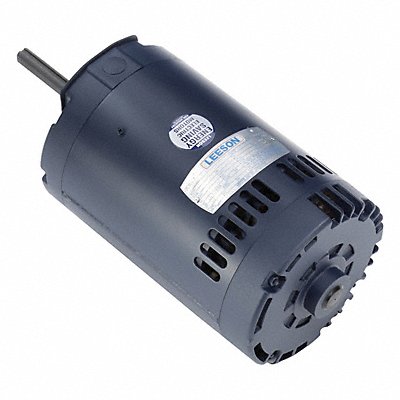

Condenser Fan Motor 230/460V AC 111148.00
Manufacturer: LESSON
Jahnda Part Number: 41O48O
EA
Description
Condenser Fan Motor Motor Design 3-Phase Phase Three 1 1/2 HP No of Speeds 1 Voltage 230/460V AC Motor Shaft Rotation CW/CCW 56Y Frame Motor Enclosure Design Open Dripproof Band Motor Mounting Type Motor Mounting Position Vertical Shaft Up Shaft Dia 5/8 in Shaft Length 3 3/4 in Motor Thermal Protection Auto Max Ambient Temp 40 Degrees C Nameplate RPM 1 140 HVAC/R 60 Hz Full Load Amps 5.6 A Ins. Class B Motor Service Factor 1.15 Motor Bearings Ball
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 45.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
