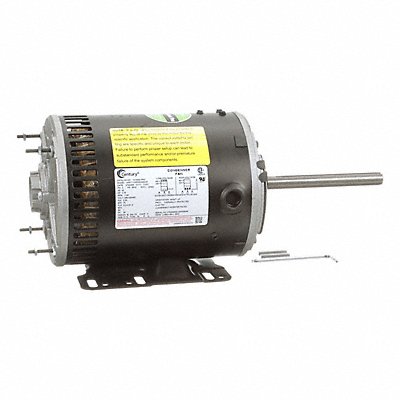

Condenser Fan Motor 230/460V AC 056T11ORR40008A2
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 05P48O
EA
Description
Condenser Fan Motor Motor Design 3-Phase Phase Three 3/4 HP No of Speeds 1 Voltage 230/460V AC Motor Shaft Rotation CW/CCW 56HZ Frame Motor Enclosure Design Open Air-Over Lug Motor Mounting Type Motor Mounting Position Vertical Shaft Up Shaft Dia 5/8 in Shaft Length 6 in Motor Thermal Protection Auto Max Ambient Temp 70 Degrees C Nameplate RPM 1 140 HVAC/R 60 Hz Full Load Amps 3.2/1.6 A Ins. Class F Motor Service Factor 1 Motor Bearings Ball Overall Length 15 7/8 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 26.04 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
