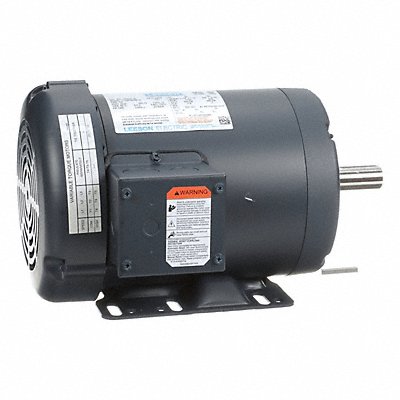

Condenser Fan Motor 208 230V AC 120947.00
Manufacturer: LESSON
Jahnda Part Number: 18O48O
EA
Description
Definite Purpose Motor Motor Design 3-Phase Phase Three 1 1/2 HP No of Speeds 1 Voltage 208-230V AC Motor Shaft Rotation CW/CCW 145T Frame Motor Enclosure Design Totally Enclosed Fan-Cooled Rigid Base Motor Mounting Type Motor Mounting Position Horizontal Shaft Dia 7/8 in Shaft Length 2 1/4 in Motor Thermal Protection None Max Ambient Temp 104 Degrees F Nameplate RPM 1 725 HVAC/R Definite Purpose 60 Hz Full Load Amps 4.8/2 A Ins. Class F Motor Service Factor 1
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 39.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
