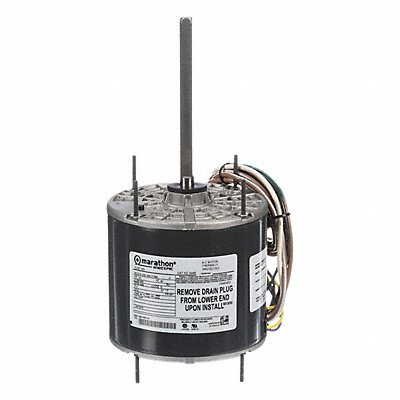

Condenser Fan Motor 208 230V AC 048A17T86
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 72O48O
EA
Description
Condenser Fan Motor Motor Design Permanent Split Capacitor Phase Single 1/3 HP No of Speeds 1 Voltage 208-230V AC Motor Shaft Rotation CCW 48Y Frame Motor Enclosure Design Totally Enclosed Air-Over Stud Motor Mounting Type Motor Mounting Position Horizontal Shaft Dia 1/2 in Shaft Length 6 1/16 in Motor Thermal Protection Auto Max Ambient Temp 40 Degrees C Nameplate RPM 1 625 HVAC/R 60 Hz Full Load Amps 2.0 A Ins. Class B Motor Service Factor 1 Motor Bearings Ball
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 14.77 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
