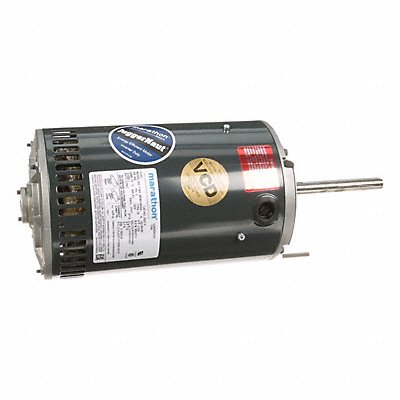

Condenser Fan Motor 200-230/460 190/380
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 22P48O
EA
Description
Condenser Fan Motor Motor Design 3-Phase Phase Three 1 HP No of Speeds 1 Voltage 200-230/460 190/380 Motor Shaft Rotation CW/CCW 56Z Frame Motor Enclosure Design Open Air-Over Band Motor Mounting Type Motor Mounting Position Horizontal Shaft Dia 5/8 in Shaft Length 5 1/16 in Motor Thermal Protection Auto Max Ambient Temp 70 Degrees C Nameplate RPM 710/850 General Application 50/60 Hz Full Load Amps 5.3 A Ins. Class H Motor Service Factor 1 Motor Bearings Ball
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 45.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
