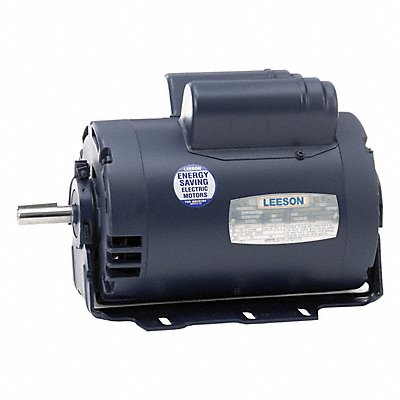

Condenser Fan Motor 115V AC
Manufacturer: LESSON
Jahnda Part Number: 42O48O
EA
Description
Condenser Fan Motor Motor Design Capacitor-Start Phase Single 1 HP No of Speeds 1 Voltage 115V AC Motor Shaft Rotation CCW 56H Frame Motor Enclosure Design Open Dripproof Resilient Base Motor Mounting Type Motor Mounting Position Horizontal Shaft Dia 5/8 in Shaft Length 1 7/8 in Motor Thermal Protection None Max Ambient Temp 104 Degrees F Nameplate RPM 1 725 HVAC/R Condenser Fan 60 Hz Full Load Amps 13.2/9.5 A Ins. Class F Motor Service Factor 1 Motor Bearings Ball
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 44.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
