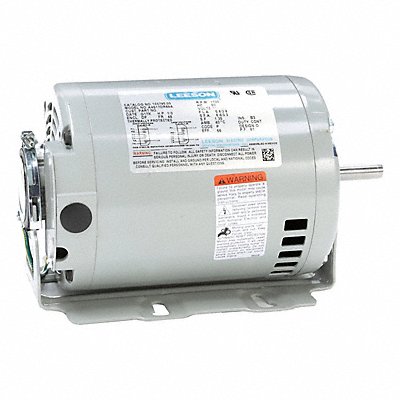

Condenser Fan Motor 115/230 103795.00
Manufacturer: LESSON
Jahnda Part Number: 39O48O
EA
Description
Condenser Fan Motor Motor Design Split-Phase Phase Single 1/3 HP No of Speeds 1 Voltage 115/230 Motor Shaft Rotation CCW 48 Frame Motor Enclosure Design Open Dripproof Resilient Base Motor Mounting Type Motor Mounting Position Horizontal Shaft Dia 1/2 in Shaft Length 1 1/2 in Motor Thermal Protection Auto Max Ambient Temp 40 Degrees C Nameplate RPM 1 725 General Application 60 Hz Full Load Amps 2.79 A Ins. Class B Motor Service Factor 1.35 Motor Bearings Ball
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 15.9 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
