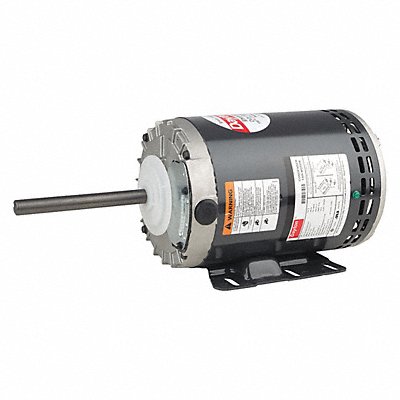

Condenser Fan Motor 1/2 HP 575 rpm 60 Hz
Manufacturer: DAYTON
Jahnda Part Number: 49J44A
EA
Description
Condenser Fan Motor Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 575 No of Speeds 1 Voltage 230/460V AC 3.1/1.6 A Full Load Amps 56YZ Frame 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 60 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Rigid Base Inverter Rated Yes Motor Mounting Position Vertical Shaft Up Shaft Length 3 1/4 in Lead Length 6 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 44.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
