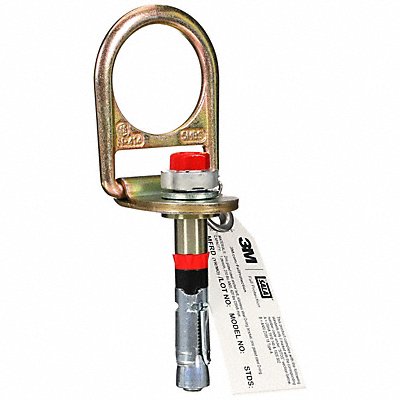

Concrete Anchor Permanent Reusable
Manufacturer: 3M DBI-SALA
Jahnda Part Number: 02F76A
EA
Description
Concrete Anchor Maximum Hole Depth 4 1/2 in Number of Bolts Included 1 Weight Capacity 310 lb Anchor Material Stainless Steel Anchor Installation Permanent Reusable Tensile Strength 5 000 lb Attachment Point Swivel D-Ring Overall Length 5 3/4 in Width 3 in Detent Anchor Components Not Applicable ANSI Standards Met ANSI ASTM Standards Met ASTM E488 OSHA Standards Met OSHA 1910.140 OSHA 1926.502 Bolt Length 4 1/8 in Concrete Strength 3 000 psi For Hole Diameter 3/4 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 46182304 |
| UNSPSC Segment | 46 |
| UNSPSC Family | 4618 |
| UNSPSC Class | 461823 |
| Country of Origin (subject to change) | Taiwan |
