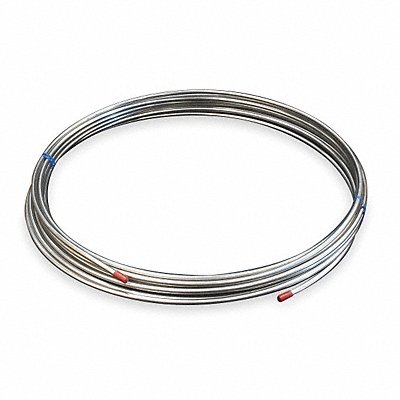

Coil Tubing Welded 1/4 In 50 ft 304 SS 3ADC8
Manufacturer: TW METALS, LLC
Jahnda Part Number: 84G23B
EA
Description
Tubing Cleaned and Capped No Fabrication Welded Inside Diameter 0.194 in Material 304 Stainless Steel Material Grade 304 Maximum Operating Pressure 3 570 psi @ 72 Degrees F Maximum Operating Temperature 1 500 Degrees F Outside Diameter 1/4 in Overall Length 50 ft Resistance Properties Corrosion Resistant Standards ASTM 269 Temper Annealed Tube Form Coil Wall Thickness 0.028 in System of Measurement Inch Minimum Operating Temperature -423 Degrees F
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 4.63 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31231319 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 23 |
| UNSPSC Class | 13 |
| Country of Origin (subject to change) | MULTIPLE |
