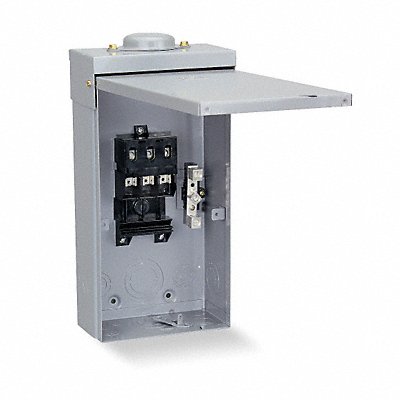

Circuit Breaker Enclosure Surface 400A
Manufacturer: SQUARE D
Jahnda Part Number: 94Q16A
EA
Description
Circuit Breaker Enclosure Material Steel NEMA Rating 12 3R Exterior Height 42.25 in Exterior Width 13.75 in Exterior Depth 7.25 in For Use With Square D LAL and LHL Circuit Breakers Powder Coated Finish Mounting Style Surface 400 A Amps Number of Spaces 3 Location Outdoor Gray Max Operating Temp 140 Degrees F Min Operating Temp 32 Degrees F Conduit Provision 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 Cover Attachment Style Side Hinge Cover Closure Method Latch
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 50.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 39121601 |
| UNSPSC Segment | 39 |
| UNSPSC Family | 3912 |
| UNSPSC Class | 391216 |
| Country of Origin (subject to change) | Mexico |
