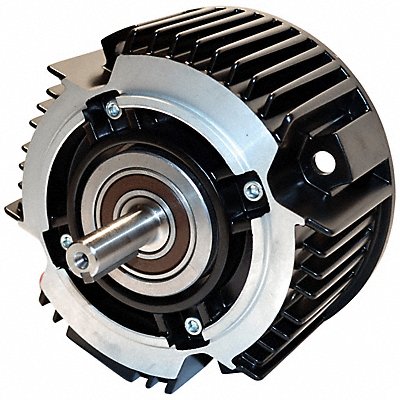

C-Face Brake Torque 30 Ft-Lb 90 DC
Manufacturer: WARNER ELECTRIC
Jahnda Part Number: 94J75A
EA
Description
Brake Clutch/Brake Type Magnetic Clutch/Brake Coil Voltage 90V DC Operating Voltage 90V DC Enclosure Type Vented Static Torque 30 ft-lb Shaft Diameter 5/8 in Maximum Speed 3 600 RPM Mounting Location NEMA C-face Motor or Reducer or Base Mounted For Use With NEMA C-Face Motor/Reducer Includes Mounting Hardware Overall Length 5.17 in Overall Width 6.75 in Phase - Service Factor - Standards UL Listed Application - Converts NEMA C-Face Motors and Gear Reducers to Geared Brake Motor
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 12.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26111909 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2611 |
| UNSPSC Class | 261119 |
| Country of Origin (subject to change) | United States |
