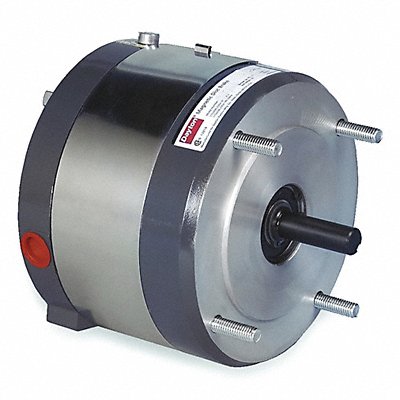

Brake Motor 6 Ft Lb
Manufacturer: DAYTON
Jahnda Part Number: 32Y83B
EA
Description
Brake Clutch/Brake Type C- Face Magnetic Disc Coil Voltage 115/208-230V AC Operating Voltage 115/208-230V AC Enclosure Type Dripproof Static Torque 6 ft-lb Horsepower @ RPM 2 hp @ 1725 RPM 3 hp @ 3450 RPM Shaft Diameter 5/8 in Maximum Speed 3 450 RPM Mounting Location NEMA C Face Motor or Between Motor and Reducer For Use With Single Phase Motors or When Wired per Instructions Includes - Phase Single Service Factor - Standards CSA Certified
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 12.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26112105 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2611 |
| UNSPSC Class | 261121 |
| Country of Origin (subject to change) | United States |
