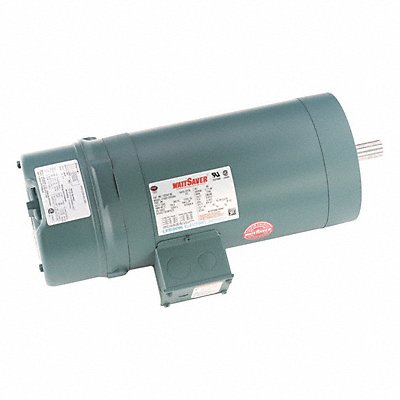

Brake Motor 3 Phase Rigid 122241.00
Manufacturer: LESSON
Jahnda Part Number: 20O48O
EA
Description
Brake Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 230/460V AC 3.0 A Full Load Amps 145TC Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Brake Rating 10 ft-lb
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 53.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
