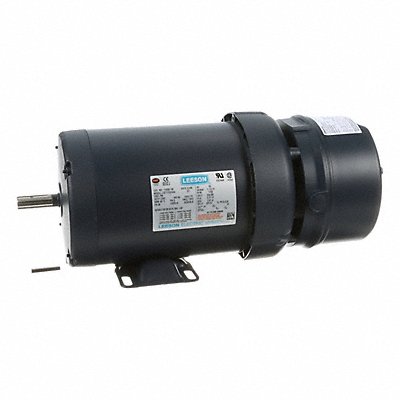

Brake Motor 3 Phase Rigid 119561.00
Manufacturer: LESSON
Jahnda Part Number: 16O48O
EA
Description
Brake Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 230/460V AC 1.7 A Full Load Amps 56 Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Brake Rating 6 ft-lb
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 50.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
