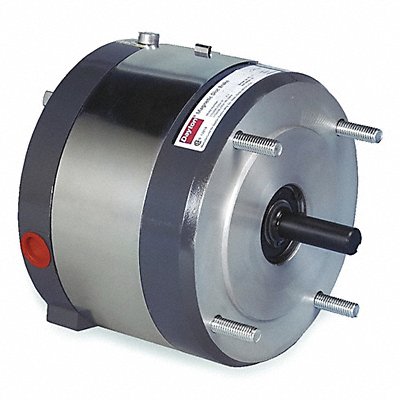

Brake Magnetic Disc Torque 10 Ft-Lb
Manufacturer: DAYTON
Jahnda Part Number: 32B36A
EA
Description
Washdown Brake Clutch/Brake Type Double C-Face Magnetic Disc Brake Coil Voltage 115/208-230V AC Operating Voltage 115/208-230V AC @ 60 Hz 95/174-190V AC @ 50 Hz Enclosure Type Totally Enclosed Static Torque 10 ft-lb Motor Frame Designation 56C/140TC NEMA/IEC Horsepower @ RPM 3 hp @ 1725 RPM 5 hp @ 3450 RPM Shaft Diameter 5/8 in Maximum Speed 3 450 RPM Mounting Location NEMA C-Face Flanges on Motors and Gear Reducers
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 12.35 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 25171708 |
| UNSPSC Segment | 25 |
| UNSPSC Family | 2517 |
| UNSPSC Class | 251717 |
| Country of Origin (subject to change) | United States |
