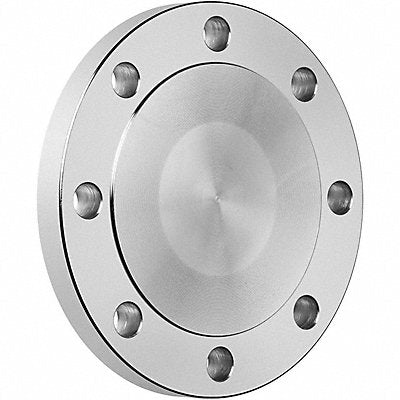

Blind Flange Flat Face 4 in Class 125
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 65N46O
EA
Description
Blind Flange Flat Face 4 in Nominal Pipe Size Flanged x Blind 9 in Flange Outside Diameter 7/8 in Flange Thickness 9 in Overall Length Aluminum Class Class 125 For Pipe Schedule 40 125 psi Maximum Operating Pressure 185 psi Max Steam Pressure 0 Degrees to 270 Degrees F Number of Bolt Holes 8 5/8 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 5.59 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40141734 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 17 |
| Country of Origin (subject to change) | China |
