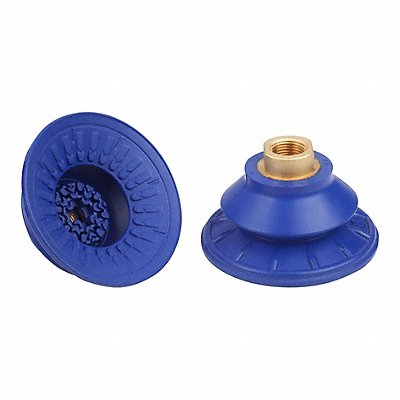

Bellow Suction cup for Sheet handling 10.01.06.01973
Manufacturer: SCHMALZ
Jahnda Part Number: 68F28O
EA
Description
Item Vacuum Pad Assembly Adapter Material Brass Durometer 60 A For Use With Handling Sheet Metal Maximum Vacuum Pressure -0.6 bar Number of Folds 1.5 Outside Diameter 80 mm Overall Height 64.9 mm Pad Color Blue Pad Diameter 89 mm Hardness 60 Shore A Pad Height 49.9 mm Pad Material NBR Pad Type Bellows Port Size 3/8 in Port Type NPT Series SAB Standards DIN ISO 3302-1 M3 Stroke 22.1 mm Weight 63 g
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.24 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 27131608 |
| UNSPSC Segment | 27 |
| UNSPSC Family | 13 |
| UNSPSC Class | 16 |
| Country of Origin (subject to change) | Germany |
