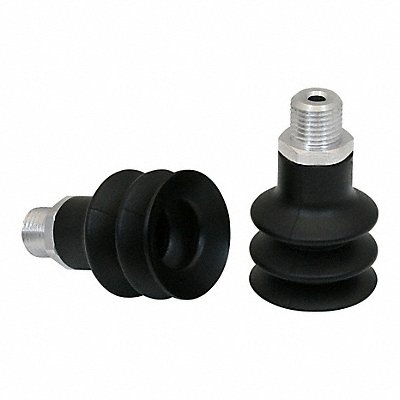

Bellow Suction Cup 2.5 10.01.06.00030
Manufacturer: SCHMALZ
Jahnda Part Number: 66E28O
EA
Description
Item Vacuum Pad Assembly Adapter Material Aluminum Durometer 55 A Maximum Vacuum Pressure -0.6 bar Number of Folds 2.5 Outside Diameter 32 mm Overall Height 52.5 mm Pad Color Black Pad Diameter 33.5 mm Hardness 55 Shore A Pad Height 41.5 mm Pad Material NBR Pad Type Multi-Bellows Port Size 1/4 in Port Type G Series FSG Standards DIN ISO 3302-1 M3 Stroke 15 mm Weight 17 g
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.04 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 27131608 |
| UNSPSC Segment | 27 |
| UNSPSC Family | 13 |
| UNSPSC Class | 16 |
| Country of Origin (subject to change) | Germany |
