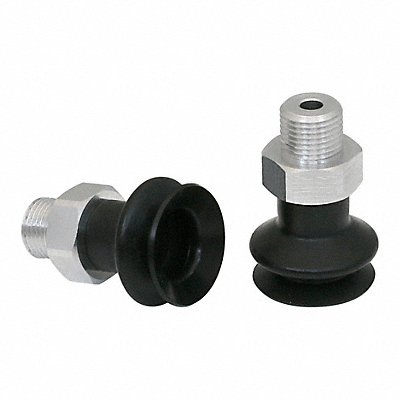

Bellow Suction Cup 1.5 10.01.06.00390
Manufacturer: SCHMALZ
Jahnda Part Number: 32F28O
EA
Description
Item Vacuum Pad Assembly Adapter Material Aluminum Durometer 55 A Maximum Vacuum Pressure -0.6 bar Number of Folds 1.5 Outside Diameter 20 mm Overall Height 28.7 mm Pad Color Black Pad Diameter 21 mm Hardness 55 Shore A Pad Height 21.2 mm Pad Material NBR Pad Type Bellows Port Size 1/8 in Port Type G Series FSGA Standards DIN ISO 3302-1 M3 Stroke 5 mm Weight 5.1 g
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.01 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 27131608 |
| UNSPSC Segment | 27 |
| UNSPSC Family | 13 |
| UNSPSC Class | 16 |
| Country of Origin (subject to change) | Germany |
