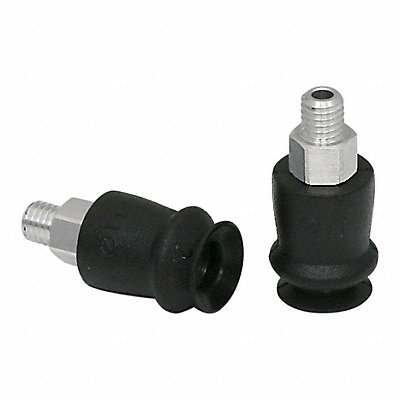

Bellow Suction Cup 1.5 10.01.06.00076
Manufacturer: SCHMALZ
Jahnda Part Number: 28F28O
EA
Description
Item Vacuum Pad Assembly Adapter Material Aluminum Durometer 55 A Maximum Vacuum Pressure -0.6 bar Number of Folds 1.5 Outside Diameter 11 mm Overall Height 26 mm Pad Color Black Pad Diameter 13 mm Hardness 55 Shore A Pad Height 21 mm Pad Material NBR Pad Type Bellows Port Size M5 Port Type Metric Series FSGA Standards DIN ISO 3302-1 M3 Stroke 4 mm Weight 2 g
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 27131608 |
| UNSPSC Segment | 27 |
| UNSPSC Family | 13 |
| UNSPSC Class | 16 |
| Country of Origin (subject to change) | Germany |
