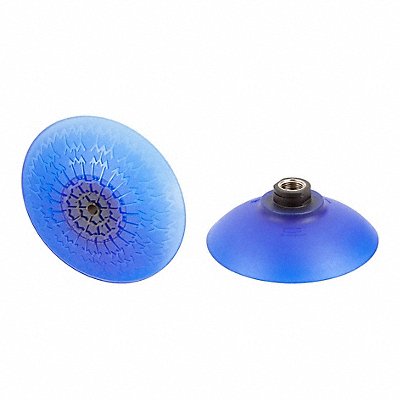

Bell Suction Cup for Sheet handling 10.01.19.00155
Manufacturer: SCHMALZ
Jahnda Part Number: 02G28O
EA
Description
Item Vacuum Pad Assembly Durometer 85 A For Use With Handling Sheet Metal Number of Folds 0 Outside Diameter 100 mm Overall Height 51.7 mm Pad Color Blue Pad Diameter 111.1 mm Hardness 85 Shore A Pad Height 39.7 mm Pad Material Elastodur ED Pad Type Deep Port Size 3/8 in Port Type NPT Series SAX Stroke 17.3 mm Weight 51 g
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.13 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 27131608 |
| UNSPSC Segment | 27 |
| UNSPSC Family | 13 |
| UNSPSC Class | 16 |
| Country of Origin (subject to change) | Germany |
