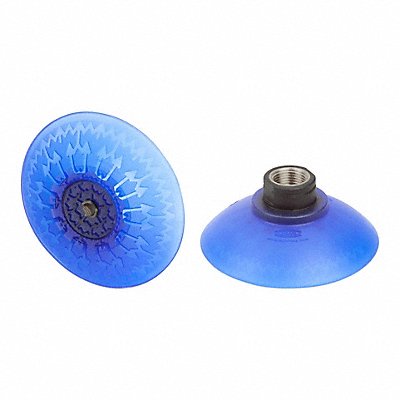

Bell Suction Cup for Sheet handling 10.01.19.00145
Manufacturer: SCHMALZ
Jahnda Part Number: 14G28O
EA
Description
Item Vacuum Pad Assembly Durometer 85 A For Use With Handling Sheet Metal Number of Folds 0 Outside Diameter 80 mm Overall Height 46.5 mm Pad Color Blue Pad Diameter 92.2 mm Hardness 85 Shore A Pad Height 34.5 mm Pad Material Elastodur ED Pad Type Deep Port Size 3/8 in Port Type NPT Series SAX Stroke 13.9 mm Weight 35 g
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.09 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 27131608 |
| UNSPSC Segment | 27 |
| UNSPSC Family | 13 |
| UNSPSC Class | 16 |
| Country of Origin (subject to change) | Germany |
