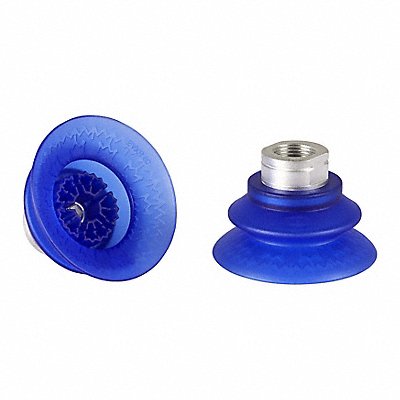

Bell Suction cup for Curved Sheet metal 10.01.42.00004
Manufacturer: SCHMALZ
Jahnda Part Number: 19G28O
EA
Description
Item Vacuum Pad Assembly Adapter Material Aluminum Durometer 85 A For Use With Curved Sheet Metal Number of Folds 1.5 Outside Diameter 60 mm Overall Height 54.3 mm Pad Color Blue Pad Diameter 66 mm Hardness 85 Shore A Pad Height 41.3 mm Pad Material Elastodur ED Pad Type Bellows Port Size 3/8 in Port Type G Series SAXB Stroke 14.5 mm Weight 30.6 g
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.08 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 27131608 |
| UNSPSC Segment | 27 |
| UNSPSC Family | 13 |
| UNSPSC Class | 16 |
| Country of Origin (subject to change) | Germany |
