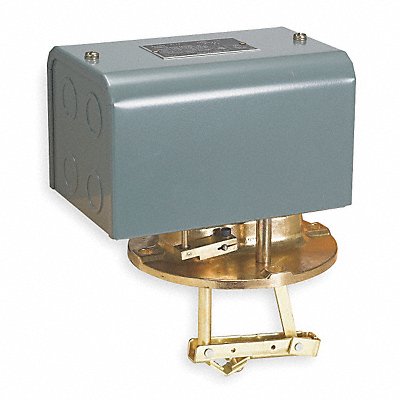

Alternator Lqd Lvl Swch 5-1/8 ClsOnRise
Manufacturer: SQUARE D
Jahnda Part Number: 74J95A
EA
Description
Alternator Liquid Level Switch Switch Function Close On Rise Vertical Open Tank Mounting Float Travel 8 3/4 in NEMA Rating 1 Tank Connection Size 5-1/8 in Max Pressure 50 psi Operating Temp Range -22 Degrees to 200 Degrees F Overall Length 3.86 in Height 4.87 in Width 6.84 in Contact Form DPST Max Current 600 A Max Voltage 575 V HP @ 1 Phase - 120V 2 hp HP @ 1 Phase - 240V 3 hp HP @ 3 Phase - 240V 5 hp Body Material Steel Float Position Below Float Rod Angle 45 Degrees
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 9.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 39121531 |
| UNSPSC Segment | 39 |
| UNSPSC Family | 3912 |
| UNSPSC Class | 391215 |
| Country of Origin (subject to change) | Mexico |
