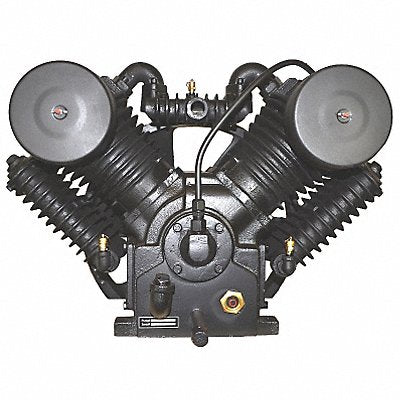

Air Compressor Pump 2 Stage 10 hp
Manufacturer: CHICAGO PNEUMATIC
Jahnda Part Number: 63W01O
EA
Description
Air Compressor Pump Lubrication Type Splash Lubricated Number of Stages 2 Maximum Output Power 10 hp Free Air Flow Rate @ Maximum Pressure 35.0 cfm @ 175 psi Number of Cylinders 2 Maximum Operating Pressure 175 psi Flywheel Diameter 19 in Flywheel Included Yes Pump Speed 900 RPM Construction Cast Iron Groove Section B Number of Grooves 2 Valve Type Disc Valve Material Stainless Steel Rotation CCW Stroke Length 3 1/2 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 383.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40151501 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 4015 |
| UNSPSC Class | 401515 |
| Country of Origin (subject to change) | China |
