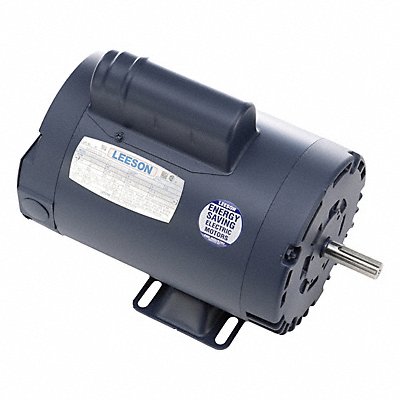

Air Compressor Motor 56 Manual 110232.00
Manufacturer: LESSON
Jahnda Part Number: 89N48O
EA
Description
Air Compressor Motor Single Phase Motor Design Capacitor-Start 2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 115/230V AC Full Load Amps 10.0 A 56 Frame 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection Manual Ins. Class B Max Ambient Temp 104 Degrees F Duty Cycle Continuous Motor Shaft Rotation CW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Steel Shaft Dia 5/8 in Shaft Length 1 7/8 in Motor Shaft Design Keyed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 33.8 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
