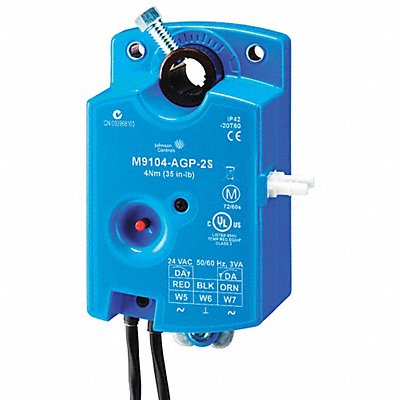

Actuator Damper 35 in-lb 20 to 30V AC
Manufacturer: JOHNSON CONTROLS
Jahnda Part Number: 57C00B
EA
Description
Actuator Valve Application Damper Signal Type Floating Point Rated Torque 35 in-lb Input Voltage 20 to 30V AC Electrical Connection Type Hardwired For Use With Building Automation Systems Building Automation System Compatible NEMA Rating 1 IP Rating IP42 Spring Return Non-Spring Return Time to Close 60 sec Shaft Type Self-Centering Shaft Rotation CW/CCW Stroke Degree 93 Degrees Mounting Type Direct Mount Maximum Operating Temperature 125 Degrees F
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.85 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31251501 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3125 |
| UNSPSC Class | 312515 |
| Country of Origin (subject to change) | Mexico |
