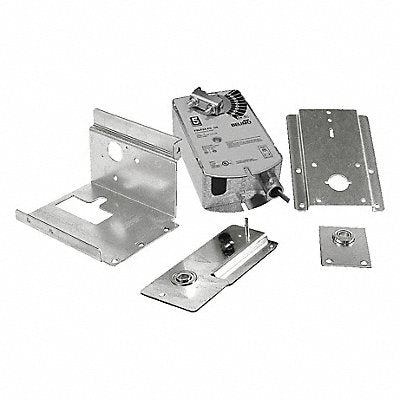

Actuator Damper 30 in-lb 24V AC/DC
Manufacturer: APPROVED VENDOR
Jahnda Part Number: 93Z26A
EA
Description
Actuator Valve Application Damper Signal Type On/Off Rated Torque 30 in-lb Input Voltage 24V AC/DC Output Signal Not Applicable Electrical Connection Type Hardwired For Use With Building Automation Systems Not Building Automation System Compatible NEMA Rating 2 IP Rating IP54 Spring Return Spring Return Time to Close 75 sec Shaft Type 1/2 in Round Shaft Rotation CW/CCW Stroke Degree 95 Degrees Mounting Type Direct Mount Maximum Operating Temperature 122 Degrees F
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 6.15 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40101504 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 4010 |
| UNSPSC Class | 401015 |
| Country of Origin (subject to change) | United States |
