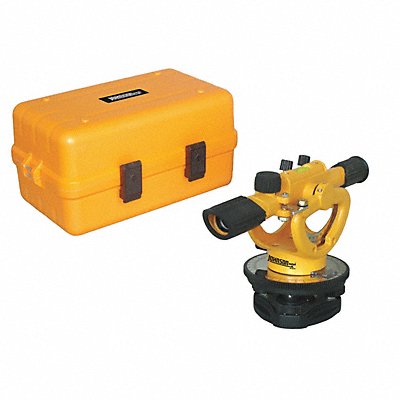

22X Builders Transit Level Range 200 Ft
Manufacturer: JOHNSON LEVEL
Jahnda Part Number: 47F92K
EA
Description
Builders Transit Level Leveling Type Leveling Screws Magnification 22X Aperture 22 mm Working Range - Maximum 200 ft Field of View 1 Degrees 6 (2 /100 ) Horizontal Graduations 1 Degrees Focus Diameter - Minimum 4 ft Accuracy +/-3/16 in @ 100 ft Horizontal Range 90 Degrees Includes Case Number of Lenses 6 Features Glass Reticle Reticle Cross Lines IP Rating Not Rated Vernier Reading 15 arc minutes Vertical Graduations 1 Degrees Vertical Range 45 Degrees
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 6.4 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 27111802 |
| UNSPSC Segment | 27 |
| UNSPSC Family | 2711 |
| UNSPSC Class | 271118 |
| Country of Origin (subject to change) | China |
