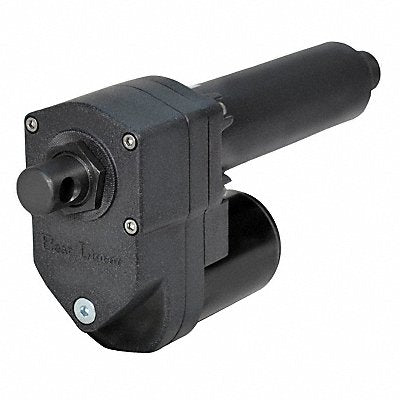

Linear Actuator 12VDC 1200 lb 4 In
Manufacturer: WARNER LINEAR
Jahnda Part Number: 93Y60A
EA
Description
Linear Actuator Rated Load 1 200 lb Stroke Length 4 in Speed @ Rated Load 30 in/min Duty Cycle 50 Percent Voltage 12V DC 25 A Full Load Amps Retracted Length 10 1/4 in Max Ambient Temp 60 Degrees C/140 Degrees F Enclosure Type Totally Enclosed Non Ventilated Motor Type Permanent Magnet Thermal Protection Automatic Capacitor Included No No Capacitor Required No Feedback Signal Clutch Included Yes Drive System Type Gear Gear Material Aluminum Bearing Type Double Ended Ball
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 9.7 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31251511 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3125 |
| UNSPSC Class | 312515 |
| Country of Origin (subject to change) | United States |
